PDF · 2 pages

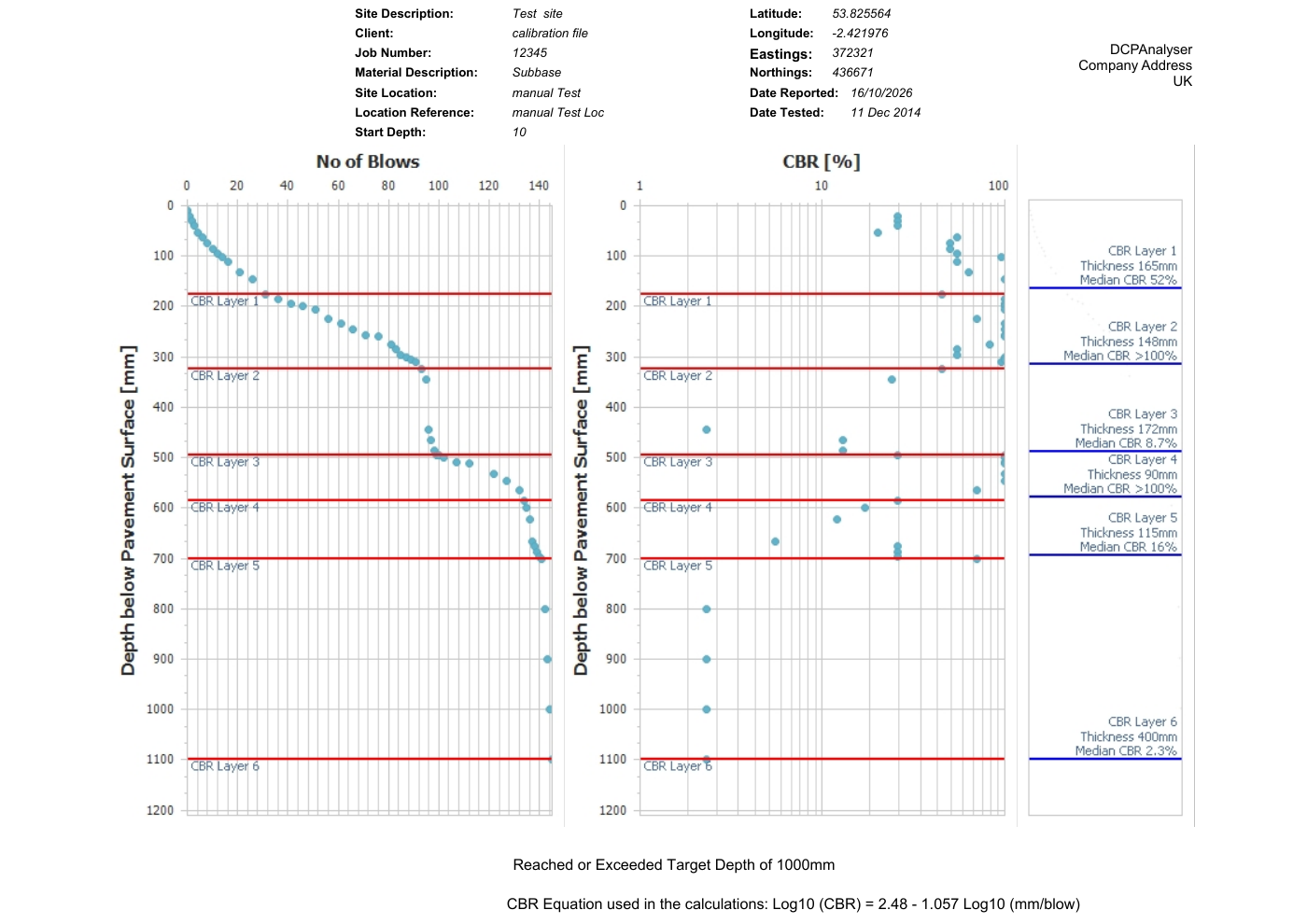

Detailed DCP report
Blow-count and estimated CBR profiles, interpreted layers and a location-plan page.
Sample reports
See the output.
In full.
Open or download original DCPAnalyser PDF reports. No enquiry form needed.
Looking for CoreDATA / RCoreAnalyser?
These demonstration exports include placeholder client and site details. They show the reporting format and are not project-specific design advice.
PDF · 2 pages

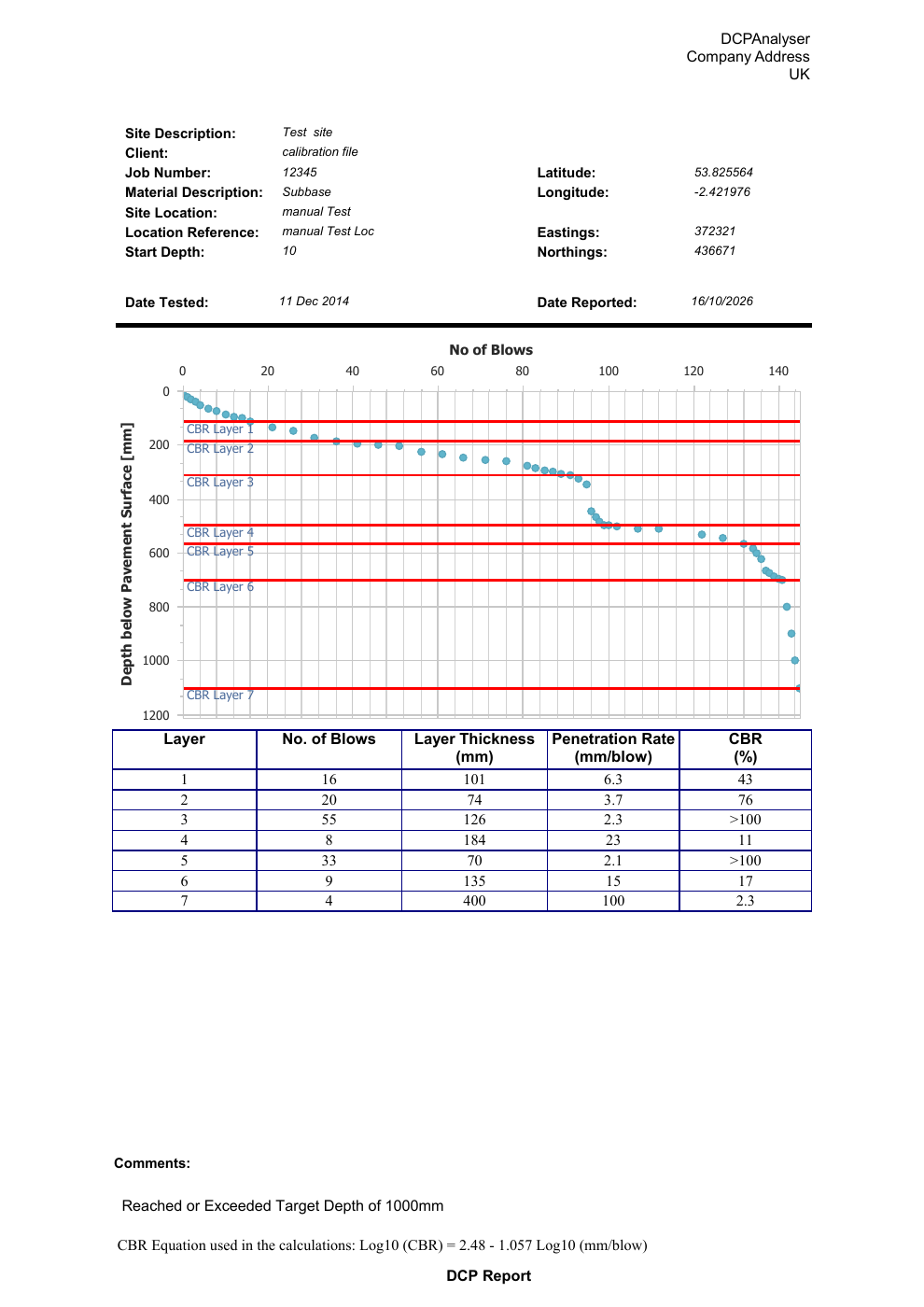

Blow-count report
The recorded blow-count profile, layer summary and a location-plan page.
Reading the samples
What the figures mean.
Estimated CBR and the sample equation
The sample exports display this correlation:
log10(CBR) = 2.48 − 1.057 log10(mm/blow)
The CBR values are estimates from penetration rate. Check the correlation’s suitability for the material, test arrangement and intended use. They are not laboratory CBR test results.
Layer interpretation and demonstration data
The examples show different report formats and layer interpretations. Compare the presentation of each report rather than treating them as identical layer-by-layer results. Check recorded depths, layer boundaries and selected calculation settings before issuing a project report.
Road core output
For CoreDATA / RCoreAnalyser reporting, request a road core example. The downloadable examples here are DCP reports.
